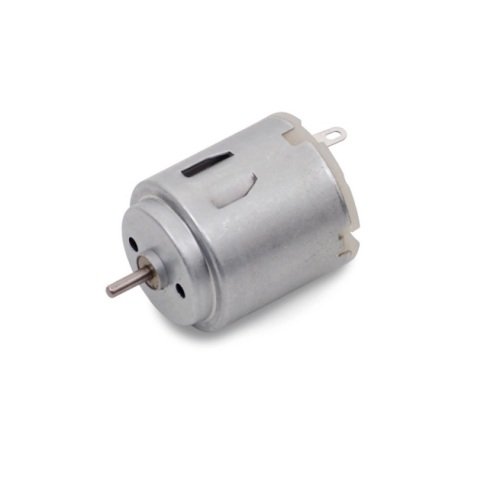

3V Medium torque DC motor


Medium torque miniature round DC motor with operating range 1.5 to 4.5V.
Suitable for modelling applications and will accept all of our 2mm bore gears and pulleys.
Rotation is clockwise as viewed from shaft end.


Motor length: 27 (exc. shaft) x 24mm dia.
Shaft length: 7 x 2.0mm dia.
Weight: 27g approx.


Nominal voltage: 3.0V
Operating range: 1.5-4.5V
No load speed: 3000 to 4900rpm
No load current: 0.83MA
Speed at max. efficiency: 5000 RPM
Current at max. efficiency: 1.14A
Output: 1.58W
Torque: 12.9g-cm
Stall torque: 110g-cm min.
Stall current: 4.2A max.

Package Included:

1 x 3V Medium torque DC motor.
