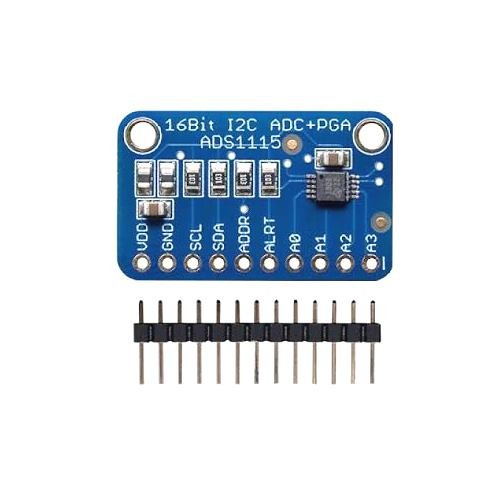

ADS1115 16-Bit – 4 Channel ADC Module

Availability:

Out of stock

₨ 450

Out of stock

Specifications:

ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
Input voltage: 2.0-5.5v
Channel input voltage :0-VDD
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE:8sps-860sps
Input range programmed control, 7 types input ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,
-2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
I2C 7-bit addresses between 0x48-0x4B
Size:18mm*28mm

Applications:

  • Portable instrumentation
  • Consumer goods
  • Battery monitoring
  • Temperature measurement
  • Factory automation and process controls



Package Included:

1 x ADS1115 16-Bit – 4 Channel ADC Module



—————————————–
