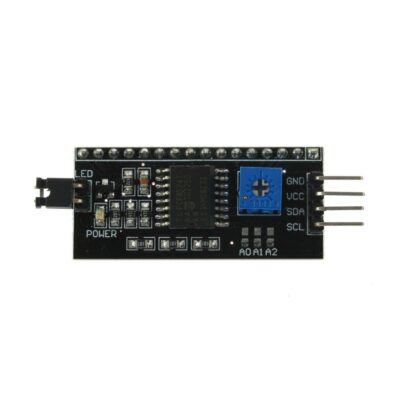

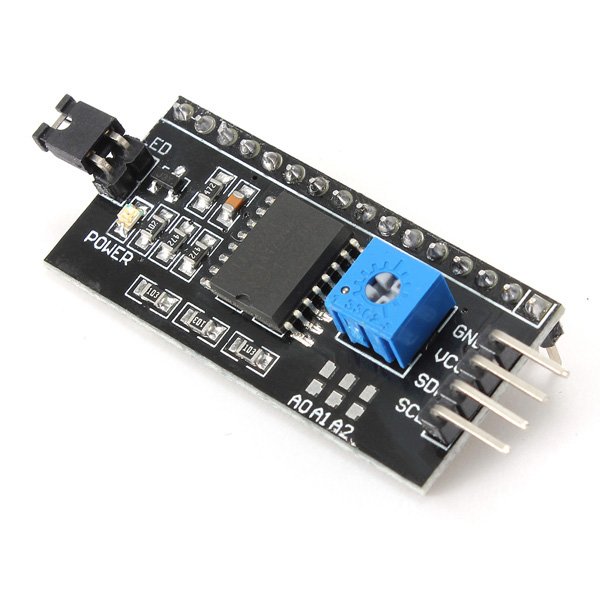

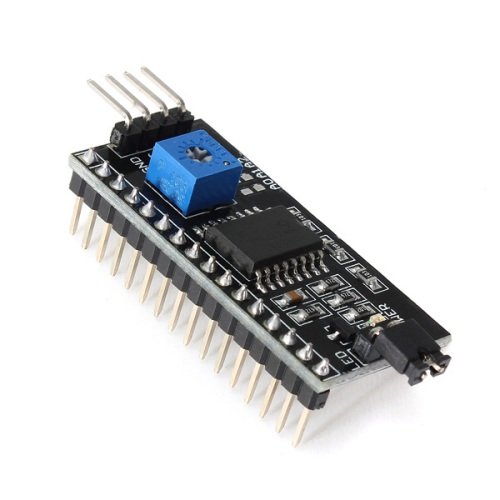

I2C Serial Interface Module for Arduino LCD

This is another great IIC/I2C/TWI/SPI Serial Interface. As the pin resources of FOR Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

• I2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)
• Supply voltage: 5V
• the backlight and contrast is adjusted by potentiometer
• Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
• Compatible for 1602 LCD

Package Included:

• 1PCS*IIC I2C Adapter Serial Interface Board Module 5v FOR Arduino 1602 LCD

Download Material:  Example & Code
