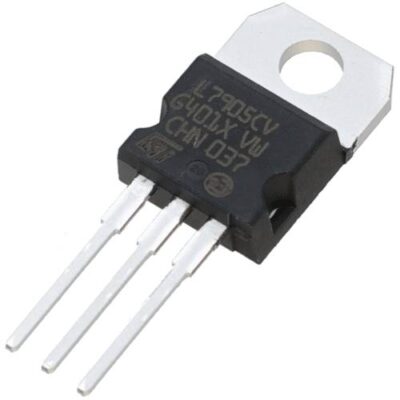

LM7905 3-Terminal 1 A Negative Voltage Regulator


LM79XX series of three-terminal negative regulators are available in a TO-220 package with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shutdown, and safe operating area protection.


  • Output Current in Excess of 1 A
  • Output Voltages of: -5 V, -6 V, -8 V, -9 V, -12 V, -15 V, -18 V, -24 V
  • Internal Thermal Overload Protection
  • Short-Circuit Protection
  • Output Transistor Safe Operating Area Compensation

Download: Datasheet

Package Include:

1 x LM7905 Voltage Regulator
