Pan-tilt Bracket for Servo SG90S MG90S

Availability:

Out of stock

₨ 200

Out of stock

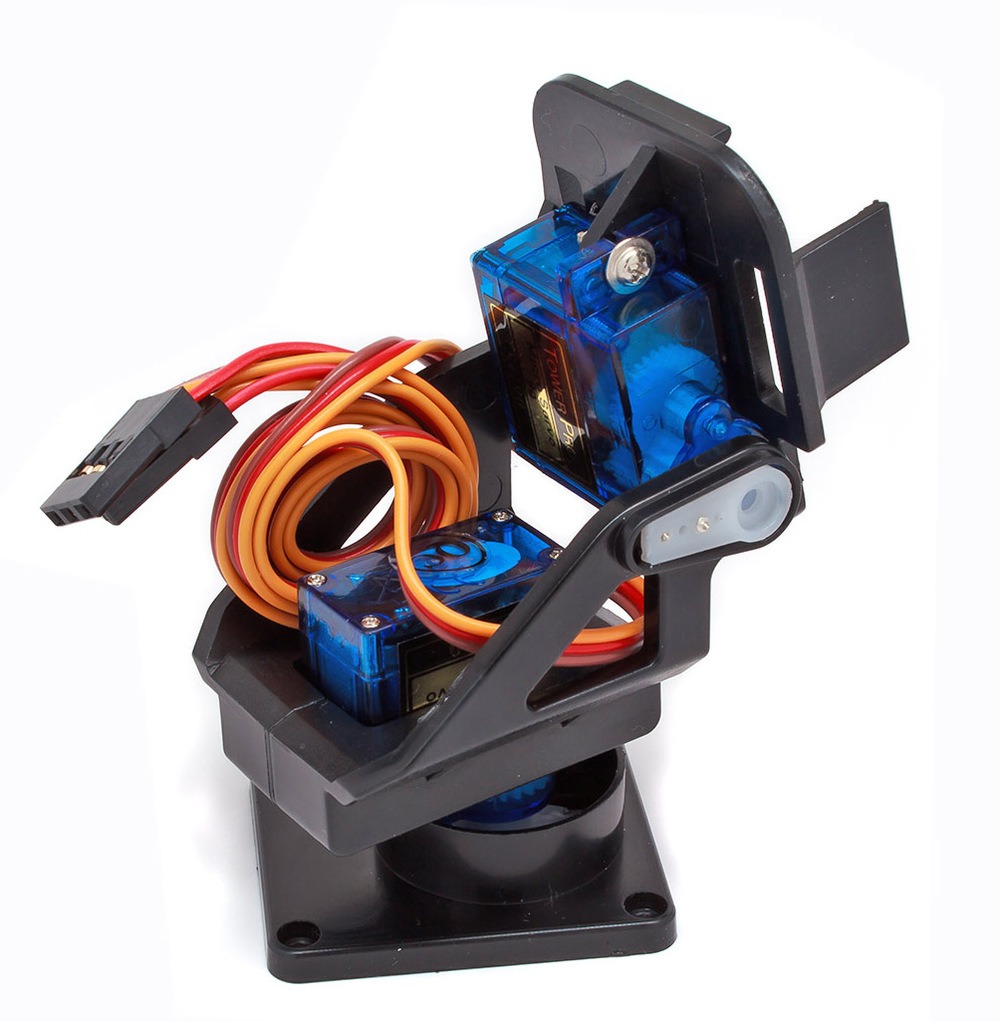

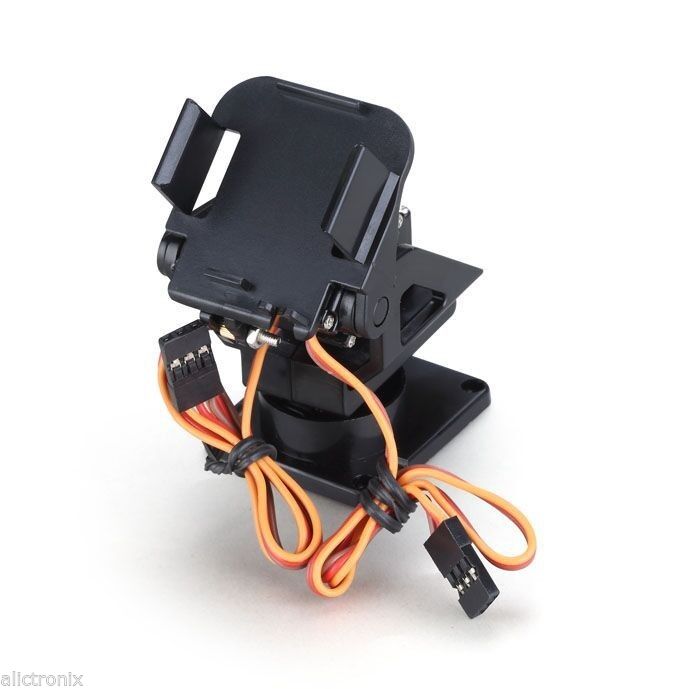

This is pan tilt servo bracket for fpv systems. It can be used for mounting other sensors such as Ultra-sonic Distance Sensor modules. It is only suitable for installation of 28mmx28mm camera module, while 32 or 38 camera can not fit. The Servo bracket system is supplied in un-assembled form and requires user to install servo motors and camera.

Applications:

  • FPV Camera systems
  • Object tracking Systems
  • Security Camera application
  • Ultrasonic Distance measurement and Ultrasonic Radars



Technical Sspecifications:

  • Supported Motors: 9g to 12g servos (such as SG90, MG90, MG90S)
  • No of Axis: 2 axis
  • Weight : 15g

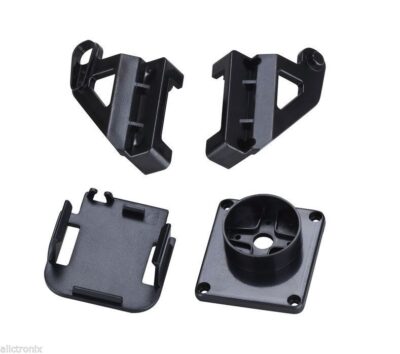

  • No of Plastic Pieces: 4
  • Material: Plastic / Nylon
  • Supported Camera size: 28mm x28mm
  • Measurement of base plate: 37mm (L), 33mm (W), 3mm thickness



Videos

Products Overview Video

Product Assembly Video

Package Includes:

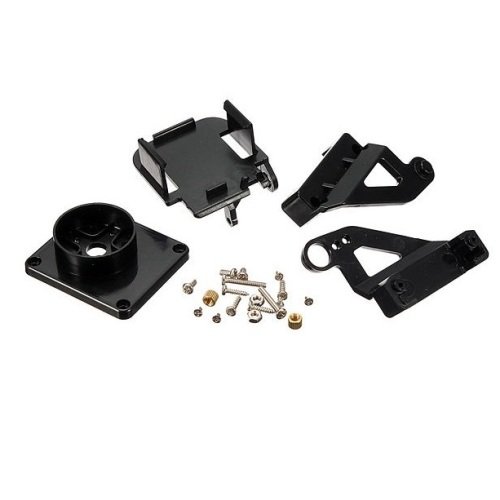

  • 1x Servo bracket PT Pan/Tilt Camera Platform for FPV Systems (un-assembled, servo motors and camera is not included)
  • 1x Set of Screws and nuts
SKU: CEP00315 Category: Tags: , , ,
