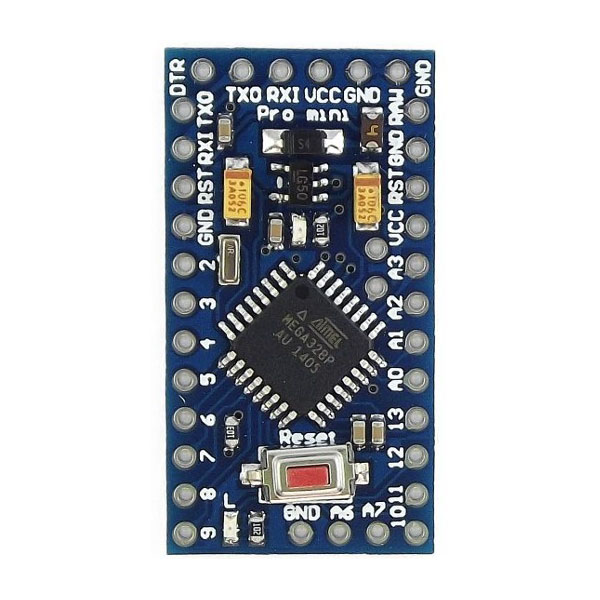

Arduino Pro Mini ATMEGA328 5V 16MHz


Out of stock


Out of stock

It’s blue! It’s thin (0.8mm)! It’s the Arduino Pro Mini 328 . This is a 5V Arduino running the 16MHz bootloader (select ‘Arduino Duemilanove w/ 328’ within the Arduino software). The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), and USB off board.
We recommend first time Arduino users start with the Uno. It’s a great board that will get you up and running quickly.
To minimize the cost of an Arduino, the Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep the cost low, uses all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board for programming and supports auto-reset.
The latest and greatest version of this board breaks out the ADC6 and ADC7 pins as well as adds footprints for optional I2C pull-up resistors!
Features of the Arduino Pro Mini 328 – 5V/16MHz:

  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • USB connection off board
  • Supports auto-reset
  • 5V regulator
  • Max 150mA output
  • Over current protected
  • Reverse polarity protected
  • DC input 5V up to 12V
  • On board Power and Status LEDs

Package included:

1 x Pro Mini 328  5V 16MHz
