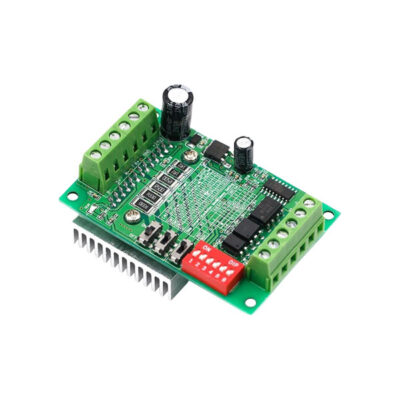

TB6560 3A Single Axis Stepper Motor Drivers CNC Router



  • Working voltage DC 10V-35V. Recommended to use a switching power supply DC 24V power supply.
  • 6N137 high-speed optical coupling, guarantee high speed without losing step.
  • Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent
  • Protection circuit to ensure optimal performance.
  • Rated maximum output: ± 3A, peak 3.5A.
  • For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor,
  • and is not suitable for more than 3A stepper motor.
  • Automatic half current function.
  • Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.
  • Main color: Green
  • Size: 75 x 50 x 33mm
  • Net weight: 83g

Package content:

1 x TB6560 3A driver board
