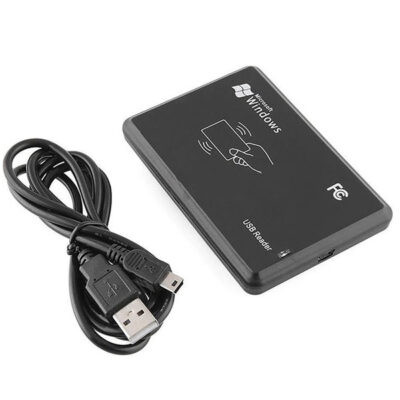

USB RFID Contactless 125Khz Card Reader

    Plug & Play
  • Windows Compatible
  • No Drivers Needed

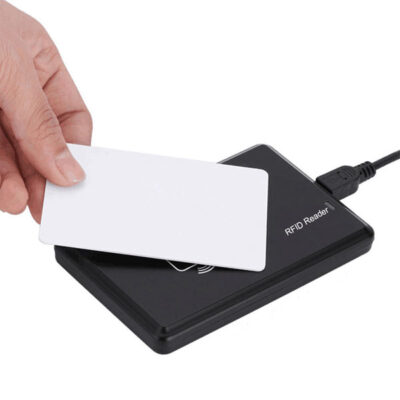

  • Place Card & Get Card Number On Any Text Field Automatically



Support μEM4001, 4100, or its compatible RFID, ID card.
Read first 10 digits of the RFID/Proximity card.
Support Windows95/98/2000/XP/7/8.
Plug and Play
Reliable working condition
Powered directly from USB, no need external power supply
Frequency: 125Khz
Communication speed: 106Kbit/s
Reading distance: 5-8cm
Operating temperature:  -10℃ ~ +70℃
Storage temperature: -20℃ ~ +80℃
Power: DC 5V(±5%)
Material: Hard Plastic
Dimension: Reader:104 x 68 x 12 mm (L x W x H)
USB Cable:Approx.137cm

Installation Instructions:

1.Connect the usb cable with the card reader to the computer USB port.
2.The reader will ‘drip’ sound and flash about that power
successfully, and then half a second after the ‘drip’ sound
and flash about that device self-test successfully, without
install any drivers, windows will automatically recognize it.
3.Open one EXCEL or WORLD ,the card number would be input by self.

Package included:

1 X USB interface RFID card reader
1 X mini USB cable
